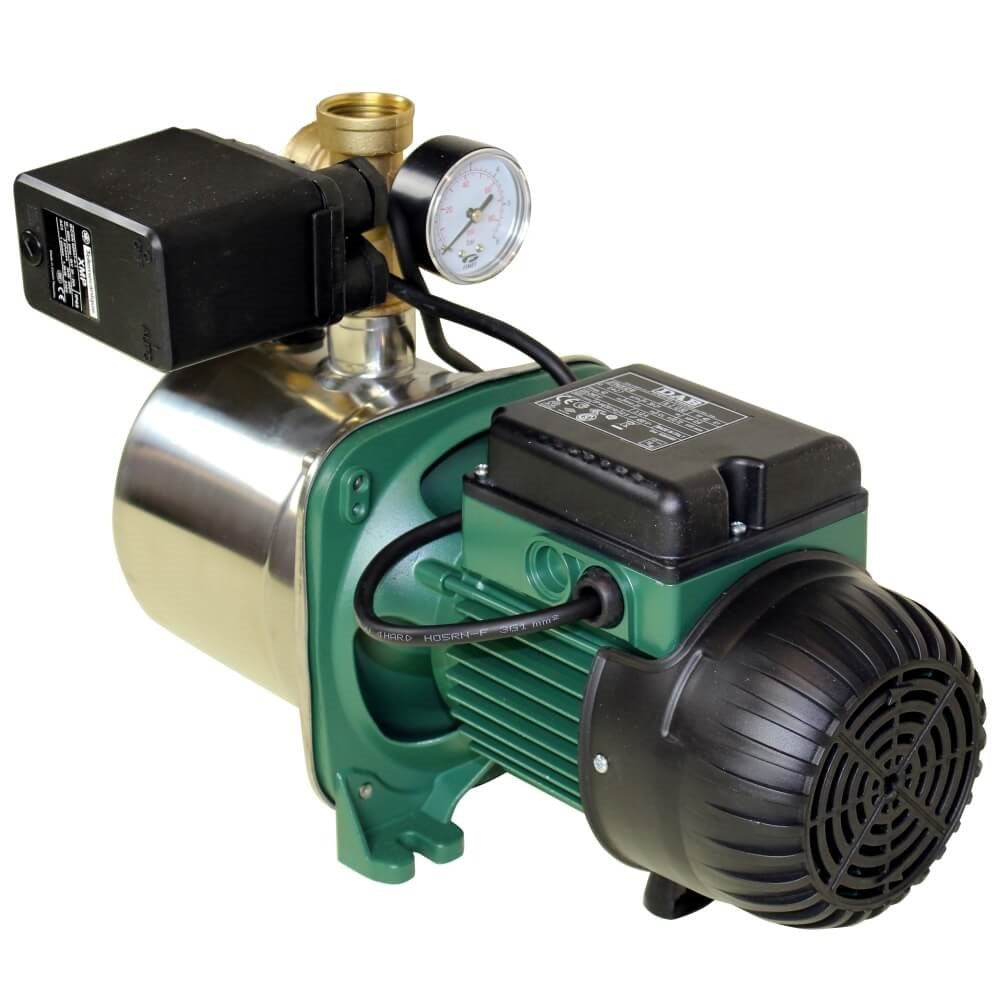

DAB-JINOX112MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 61M 1.0KW 240V
Roll over image to zoom in
DAB-JINOX112MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 61M 1.0KW 240V

DAB-JINOX112MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 61M 1.0KW 240V

Malmaks Water Shop Ltd.
Price:
$1,926.25

Description

1.0kW, 1.36hp, 240V, max hd 61m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV
Features
Self Priming Stainless Steel Jet Pressure Pumps


PRESSURE TANKS SOLD SEPARATELY
2 Year DAB Pumps Warranty

 Spare Parts
 Code Part Number
Description
702087
DABSR00010537
ASSEMBLY ACTIVEJ82M-N.6
702135 DABSR00010762
BOARD ACTIVEEI25/30M-N.7
702189 DABSR00005152
BOLTS ACTIVEJI102M-N.6
702181
DABSR00010362 25UF PRONG
DAB CAPACITOR 25 uF
702158 DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121 DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702192 DABSR00005158
IMPELLER ACTIVEJI132M-N.6
702084 DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702182 DABSR00005141
MOTOR ACTIVEEI40/50M-N.9
702191 DABSR00005157
MOTOR SHAFT ACTIVEJI132M-N.6
702085 DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702183 DABSR00005144
PUMP BODY ACTIVEJI102M-N.6
702119 DABSR00009575
SEAL ACTIVEJ82M
702187
 DABSR00005150
SUPPORT ACTIVEEI40/50M-N.9



Product Code
DAB-JINOX112MP


Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Bar 6.1
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60
Hp 1.36
kPa 618
Kilo Watts 1
Head Range Category c. 60 - 99 m
Max Head (m) 61
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6
Volts 240
Warranty (months) 24
Watts 1000


Product Information and Data Sheets1

Product Information and Data Sheets2

Spare Parts Information and Exploded Diagrams1

Spare Parts Information and Exploded Diagrams2

Spare Parts Information and Exploded Diagrams3

Operation and Installation Manuals1

Operation and Installation Manuals2

Certificates & Compliance Information


Price includes GST
