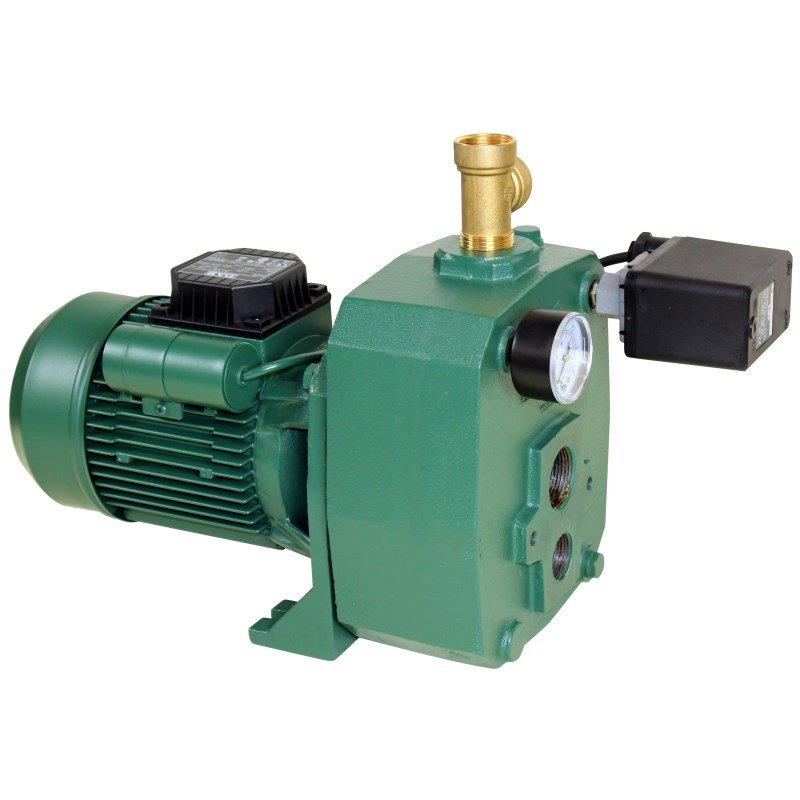

DAB-DP251MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 72L/MIN 70M 1.85KW 240V

Roll over image to zoom in

DAB-DP251MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 72L/MIN 70M 1.85KW 240V

Name: DAB-DP251MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 72L/MIN 70M 1.85KW 240V
Brand: Malmaks Water Shop Ltd.
Price: 2101.05 NZD
Availability: InStock

Malmaks Water Shop Ltd.

Deep Well Multistage Cast Iron Pressure Systems

1.85kW, 2.5hp, 240V, max hd 70m, max flow 72L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Spare Parts

Code	Part Number	Description
702222	DABSR00005230	CAPACITOR DP251M-N.1
702240	DABSR00005254	COMPLETE STAGE DP-M-N.1
702308	DABSR00005653	DISCHARGE PLUG DP100M-N.3
802658	DABS R00009983	EJECTOR ASSY JET251M-N.1
702207	DABSR00005199	FAN DP151M-N.3
702129	DABSR00004703	FAN GUARD DP-M-N.3
702235	DABSR00005249	INJECTOR BODY
702219	DABSR00005213	LOAD PLUG DP100M-N.3
702224	DABSR00005232	MOTOR COVER DP251M-N.1
702237	DABSR00005251	MOTOR SHAFT DP251M-N.1
702239	DABSR00005253	NUTS AND BOLTS JET251M-N.1
702236	DABSR00005250	PLUG JET151M-N.3
702252	DABSR00005274	PUMP BODY DP-M-N.3
702227	DABSR00005240	SUPPORT JET-DP-M-N.3
702226	DABSR00005234	TERMINAL BOARD JET251M-N.1
702242	DABSR00005256	VENTURI JET251M-N.1

Product Code

DAB-DP251MP

Technical Specifications

Brand	DAB Pumps
Product Type	Jet Pressure System
Bar	7
Suitable For	Tank Transfer
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	72
Hp	2.2
kPa	709
Kilo Watts	1.9
Casing Material	Cast Iron
Head Range Category	c. 60 - 99 m
Max Head (m)	70
Port Size Inlet	1 1/4" BSPF inlet
Port Size Outlet	1" BSPF outlet
Powered	Electric
Taps	7
Volts	240
Warranty (months)	24
Watts	1850
