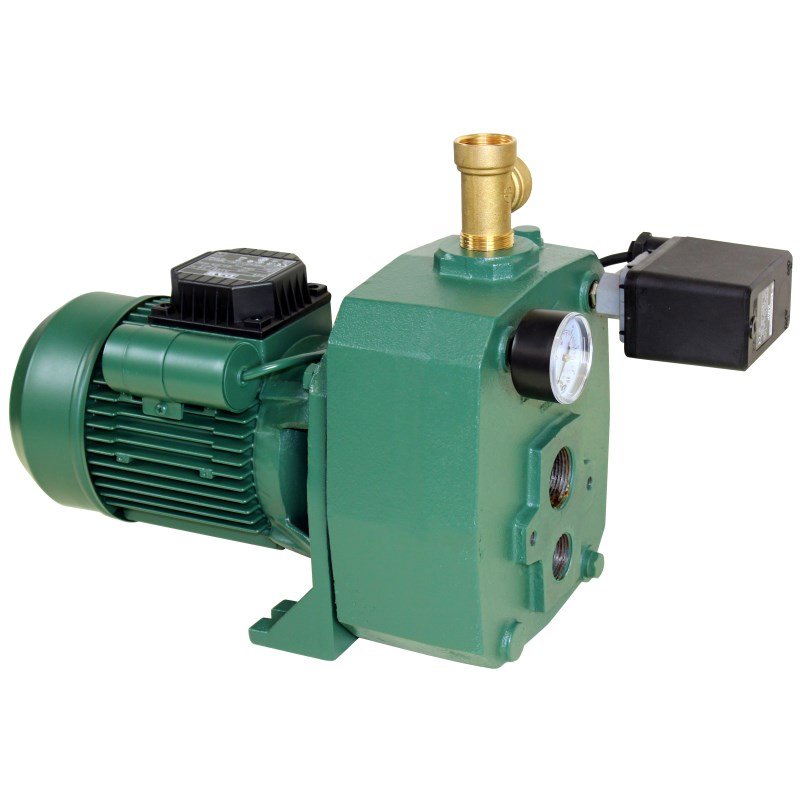

DAB-DP151MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 58L/MIN 60M 1.1KW 240V

Roll over image to zoom in

DAB-DP151MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 58L/MIN 60M 1.1KW 240V

Name: DAB-DP151MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 58L/MIN 60M 1.1KW 240V
Brand: Malmaks Water Shop Ltd.
Price: 1841.15 NZD
Availability: InStock

Malmaks Water Shop Ltd.

Deep Well Multistage Cast Iron Pressure Systems

1.1kW, 1.5hp, 240V, max hd 60m, max flow 58L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Spare Parts

Code	Part Number	Description
702212	DABSR00005206	CAPACITOR DP151M-N.3
702232	DABSR00005245	COMPLETE STAGE DP151M-N.3
702308	DABSR00005653	DISCHARGE PLUG DP100M-N.3
702207	DABSR00005199	FAN DP151M-N.3
702129	DABSR00004703	FAN GUARD DP-M-N.3
702219	DABSR00005213	LOAD PLUG DP100M-N.3
702214	DABSR00005208	MOTOR COVER DP151M-N.3
702228	DABSR00005241	MOTOR SHAFT DP151M-N.3
702252	DABSR00005274	PUMP BODY DP-M-N.3

Product Code

DAB-DP151MP

Technical Specifications

Brand	DAB Pumps
Product Type	Jet Pressure System
Bar	6
Suitable For	Tank Transfer
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	58
Hp	1.5
kPa	608
Kilo Watts	1.1
Casing Material	Cast Iron
Head Range Category	c. 60 - 99 m
Max Head (m)	60
Port Size Inlet	1 1/4" BSPF inlet
Port Size Outlet	1" BSPF outlet
Powered	Electric
Taps	5
Volts	240
Warranty (months)	24
Watts	1100
