DAB-4ESYBOX MAX 60/120M - Quad Pump With Dock Pressure Pump System 1160 L/M 69M 4X2.68KW 240V


Price:
$40,837.65

Description

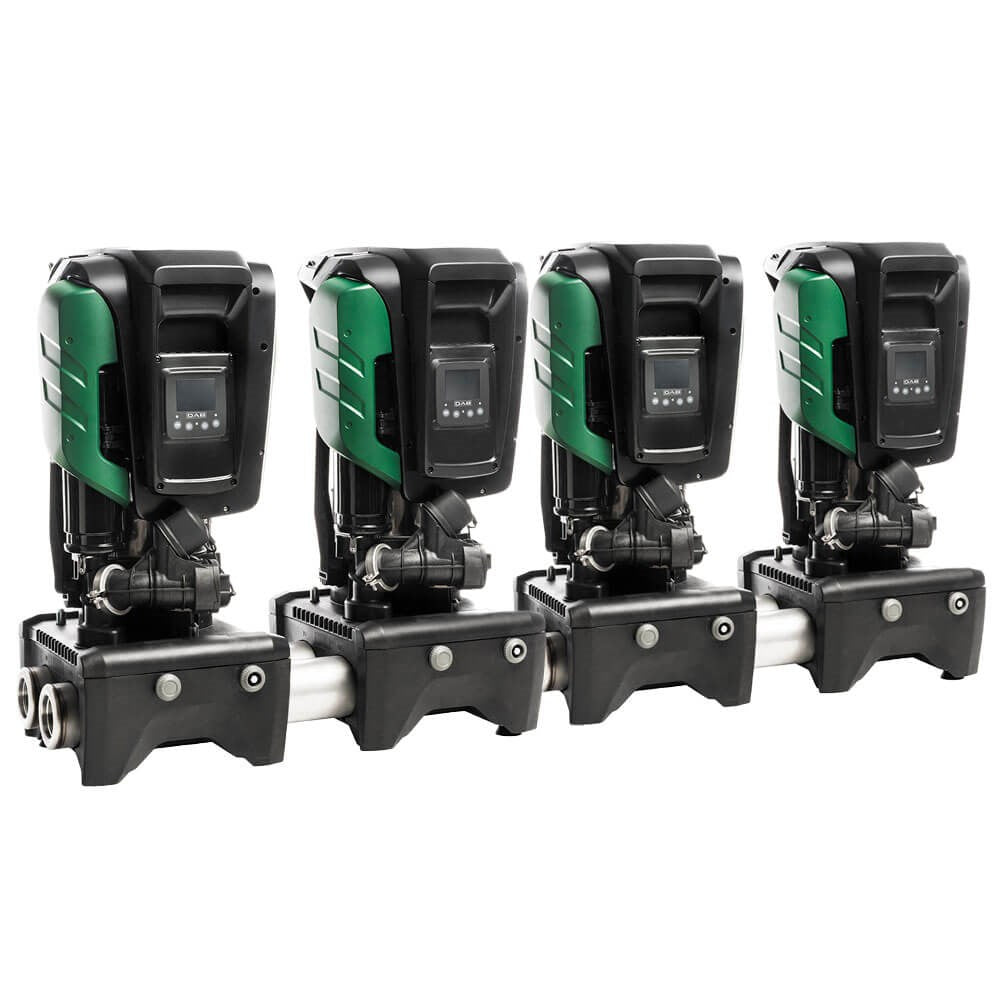

Quad VFD Pump Set

Max head 80m, max flow 1160L/m, 2" BSPF

Features

The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.

Integrated pumping systems for pressurization in commercial building services industry and for rural and horticultural applications. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of large residential, medium/large apartments and high rise buildings (even over 14 floors).

Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank. The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site, even by one person. The variable frequency drive keeps the pressure constant according to the load and thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings.



Technical Performance Data
Technical Specifications
Flow rate: Up to 290 lpm (for single unit)
Head: 113 m
Liquid temperature: +50°C
Maximum ambient temperature: +55°C
Maximum inlet pressure: 5 Bar
Operation pressure: 12 Bar / 1200 Kpa
Constant pressure range: 1-12 Bar (3 bar by default)
Motor protection class: IPX5
Motor insulation class: F
Impeller material: Technopolymer
Single phase power input: 208-240V 50/60 Hz
Three phase power input: 380-480V 50/60 Hz
Type of installation: Fixed In Vertical Position
Type of pumped liquid:
  • Clean
  • Free From Solid Or Abrasive Substances
  • Non-Viscous
  • Non-Aggressive
  • Non-Crystallised
  • Chemically Neutral





Key Features
1 DISPLAY
2 INVERTER
3 MODULE WIFI/BLUETOOTH
4 PRESSURE SENSOR (delivery side)
5 PRESSURE SENSOR (suction side)
6 NON-RETURN VALVE
7 2L EXPANSION TANK
8 IMPELLERS
9 HYDRAULICS CONNECTIONS
10 FAST CONNECTION TOOL
11 WATER COOLED PERMANENT MAGNET MOTOR
12 HANDLES





Accessories

ESY I/O

The electronic expansion module allows Esybox Max to interface with the external input/output devices (eg: float switch, pressure switch, remote alarm) and with the BMS world (Building Management System).

CONTROL PANEL

Electrical connection panels for 2 or 3 pumps complete with magnetothermic switches for powering multi-pump units. It can be installed on the wall or directly to Esybox Max units using the dedicated pillar kit.

PILLAR KIT

Useful for mounting the control panel EG on board of the 2 or 3 Esydock max.

JOINT KIT

Kit consisting of 2 pieces of 3-piece unions and 2 pieces of 2” nipples to connect the delivery and suction of a pair of 2 esydock max to create 4-unit esybox groups.


E.SYAPP

e.syapp is the new DAB mobile application for the line of electronic booster sets that redefine the rules of residential water pressurisation: e.syline!

e.syapp allows you to:

  • Choose the ideal e.syline product for your application.
  • Easily calculate cost-savings on your electricity bill
  • Instant access to installation videos, catalogs, quick guides, data sheets and instruction manuals.

Get it on Google Play



Product Code
DAB-4 ESYBOX MAX 60/120M


Technical Specifications
Brand DAB Pumps
Bar 7.8
Approval Approved For Drinking Water
Flow Range Category g. 1000+ L/min
Flow Rate (L/min) 1160
Kilo Watts 4x2.68
Head Range Category c. 60 - 99 m
Max Head (m) 80
Volts 240



Product Information and Data Sheets

Product Brochures

Warranty Information

Spare Parts Information and Exploded Diagrams

Operation and Installation Manuals1

Operation and Installation Manuals2

Operation and Installation Manuals3

Certificates & Compliance Information



Price includes GST
