Description

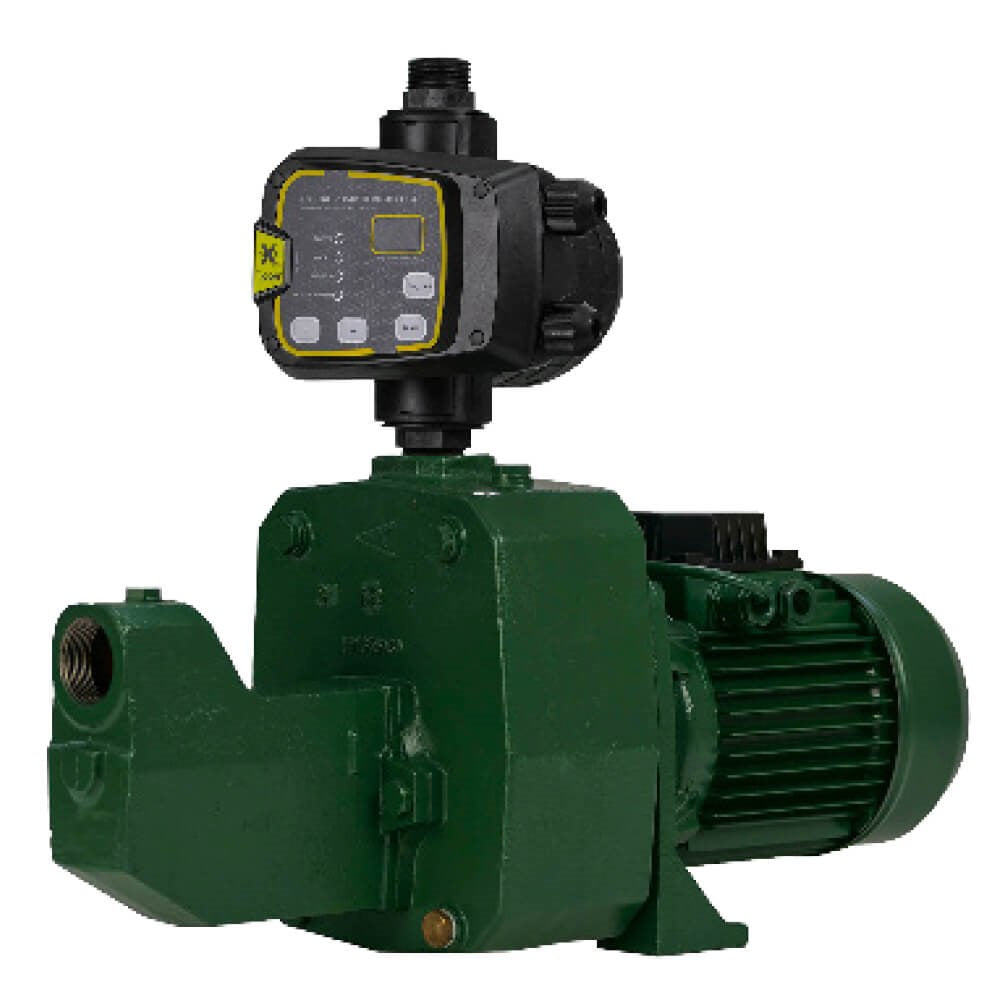

DAB iCON Powered Pressure System
Ideal for medium to large homes. Suitable for high density urban applications.
1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m, 7 taps. Ports 1-1/4” BSPF In, 1” BSPF Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.
Controller
This pump includes the Bianco iCON nXt PRO series of pump controller.
The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Controller Modes
Two operational modes:
-
Mode One - Adjustable cut in pressure setting.
- Controller stops pump when flow drops.
-
Mode Two - Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.
Controller Flow Curve
| nXt PRO Controller Data | |
|---|---|
| Function | ON/OFF + Config |
| Modes | 2 |
| Size | 2.2Kw |
| Rated Voltage | 220-240V AC |
| Max Amps | 16 |
| Rated Power | 2200w |
| Rating | IP65 |
| Union Size | 1" |
| Start Pressure | Adjustable |
| Stop Pressure | Adjustable |
| Max Pressure | 10 bar (145PSI) |
| Max Liquid Temp | 40°C |
| Cable to Pump | Plug and Play |
| Flylead for Pump | When sold as control only |
| Power Cable | 10AMP |
| Communication | - |
| Accessories (Sold Separately) | 15 AMP Cable |
| 1 ¼” Union Kit | |
Product Code
Technical Specifications
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Bar | 6 |
| Suitable For | Clean Water |
| Amps | 7.2 |
| Flow Range Category | a. 0 - 99 L/min |
| Flow Rate (L/min) | 75 |
| Float | No |
| Hp | 1.5 |
| kPa | 597 |
| Kilo Watts | 1.1 |
| Max Flow (L/min) | 75 |
| Head Range Category | c. 60 - 99 m |
| Max Head (m) | 61 |
| Port Size Inlet | 1 1/4" BSPF inlet |
| Port Size Outlet | 1" BSPM outlet |
| Powered | Electric |
| Taps | 7 |
| Volts | 240 |
| Warranty (months) | 24 |
| Watts | 1100 |
Product Information and Data Sheets1
Product Information and Data Sheets2
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals
Certificates & Compliance Information1
Certificates & Compliance Information2
