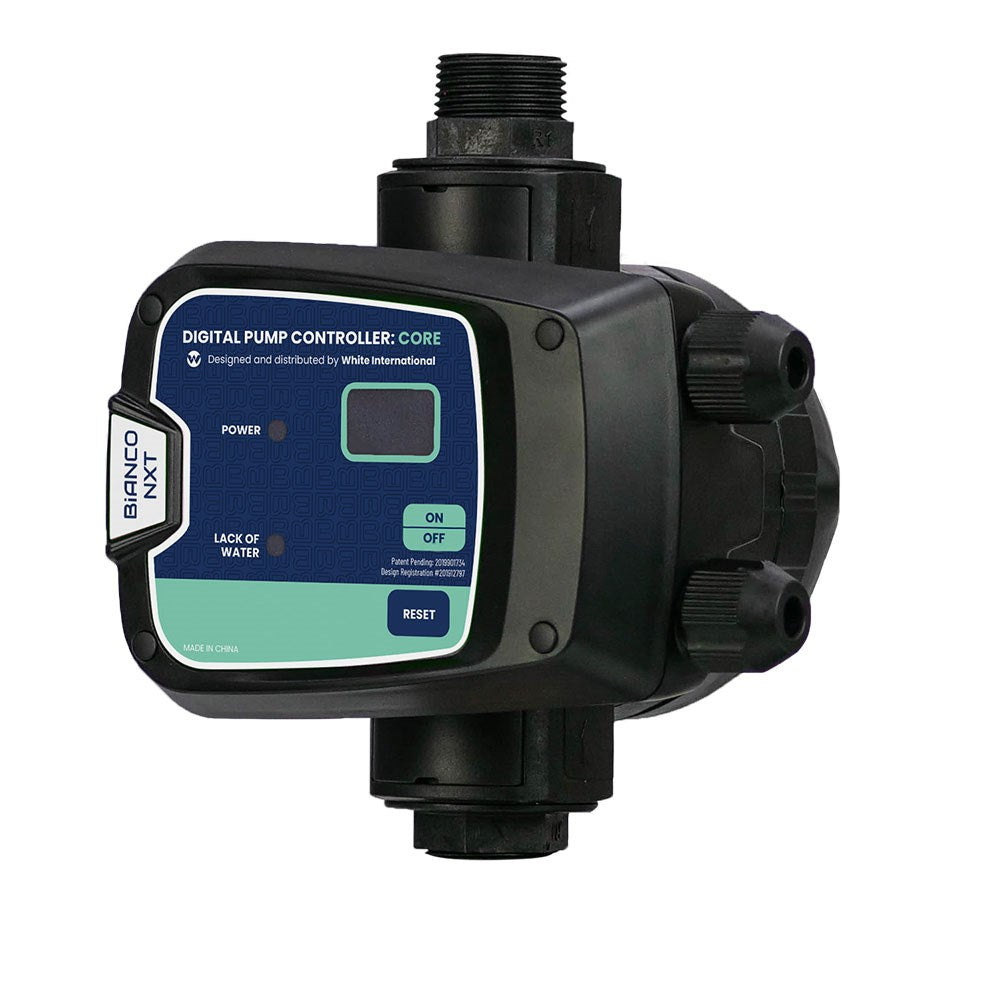

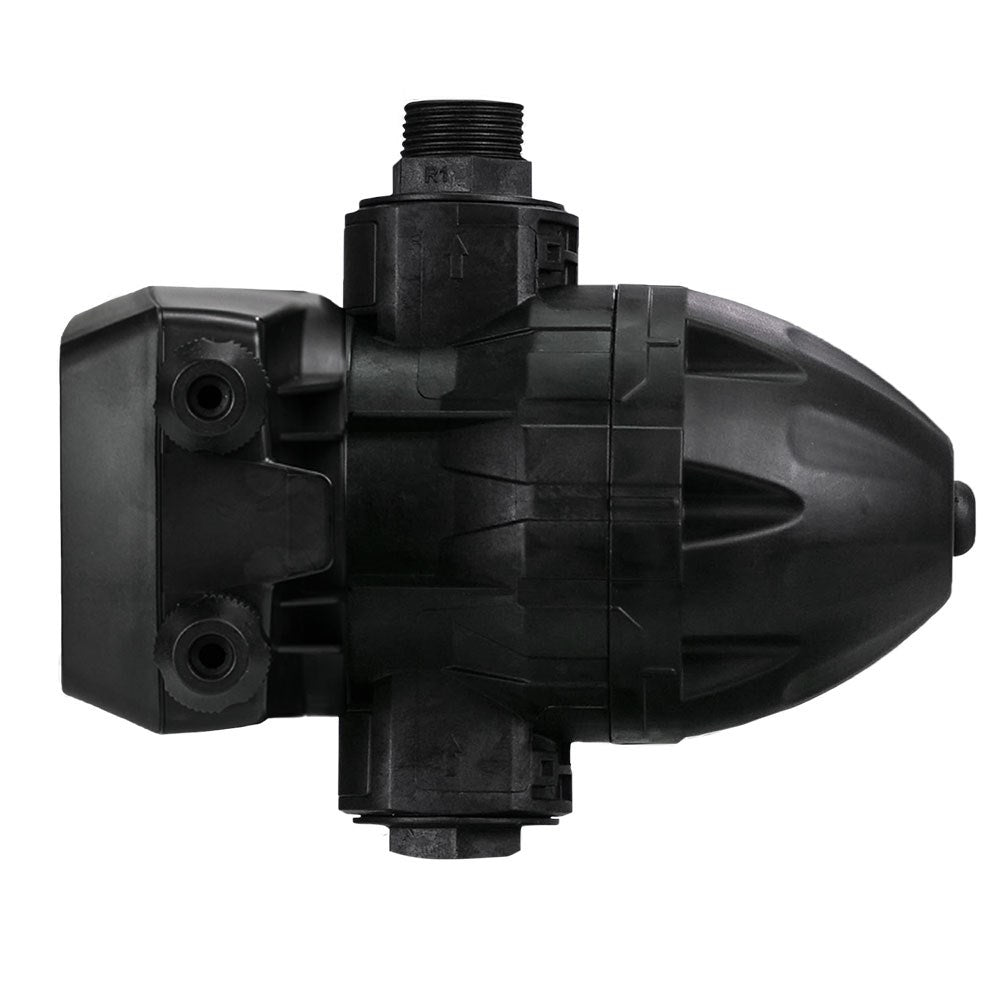

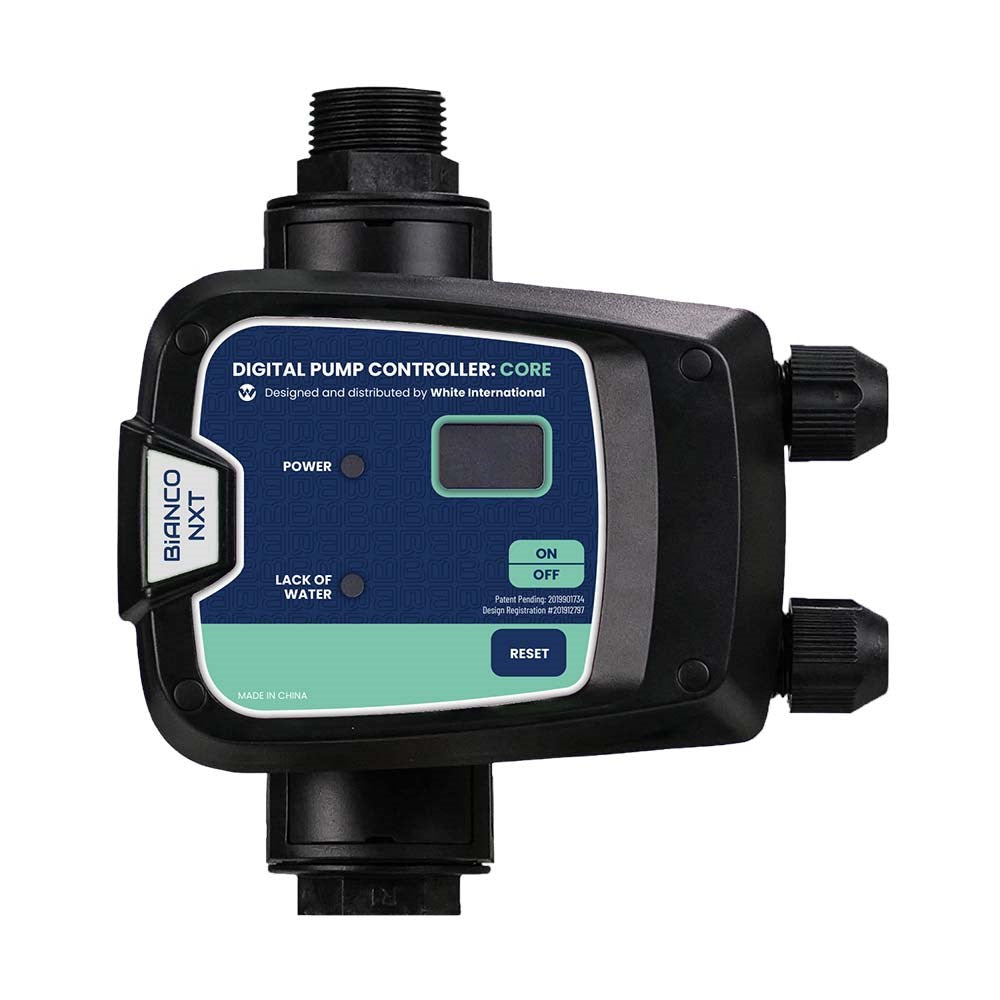

BIA-NXT - Bianco ICON nXt Series Pump Controller


Price:
$247.25

Description

The nXt series of pump controls represents the next step in pressurised pump control.

Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:

  • Household water supply
  • Irrigation
  • Water transfer
  • Washing systems
  • Pressure boosting

Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
NXT
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit



Dimensions


Product Code
BIA-CORE


Technical Specifications
Brand Bianco iCON nXt
Product Type Pump Controller
Bar 10
Kilo Watts 1.5
Casing Material Technopolymer
Port Size Inlet 1" BSPM Inlet
Port Size Outlet 1" BSPM outlet
Volts 240


Product Information and Data Sheets

Product Brochures

Operation and Installation Manuals

Certificates & Compliance Information1

Certificates & Compliance Information2


Price includes GST
