0.45kW, 0.6hp, 240V, max hd 38m, max flow 50L/m, 4 taps. Ports 1” BSPF in, 1” BSPM Out, 2.2 bar controller.

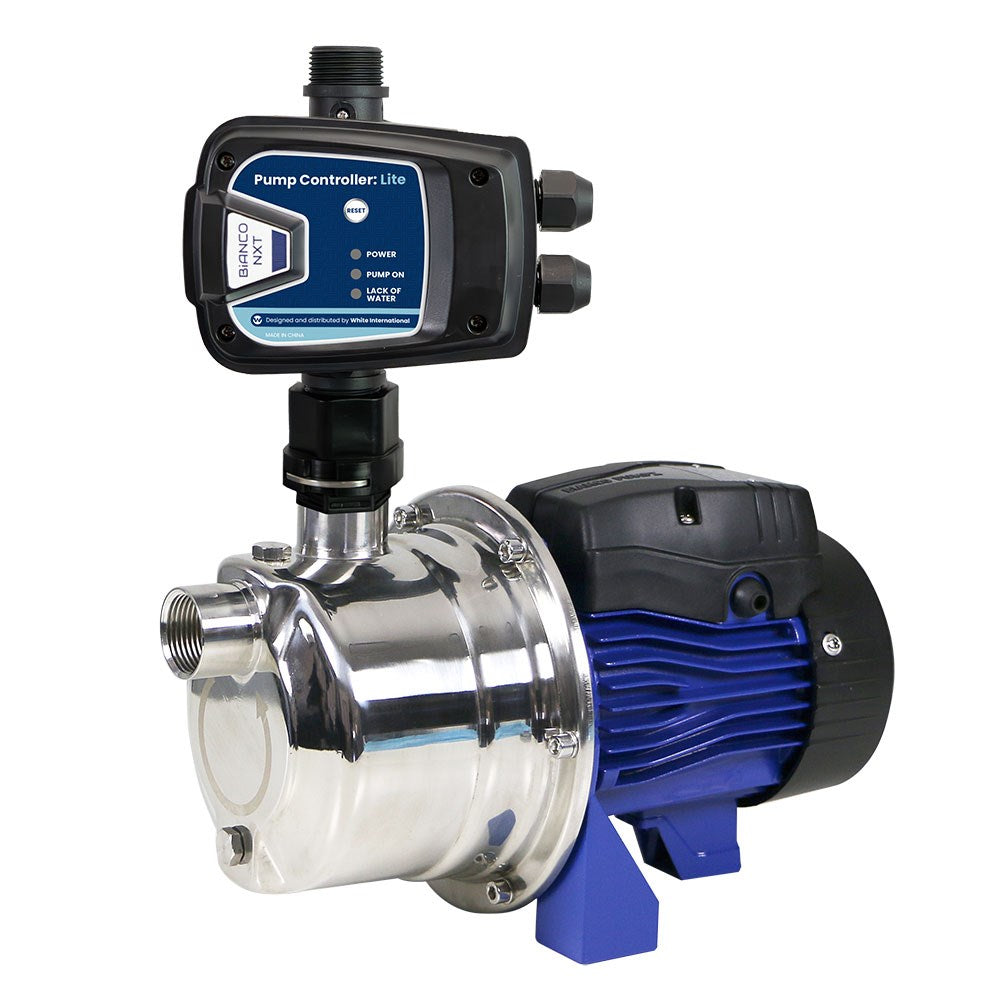

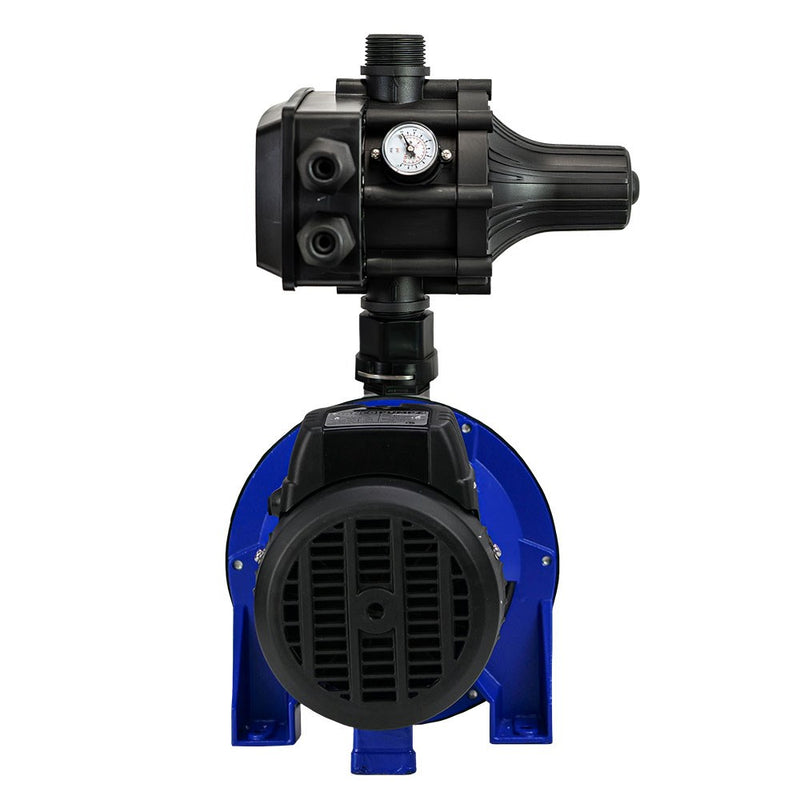

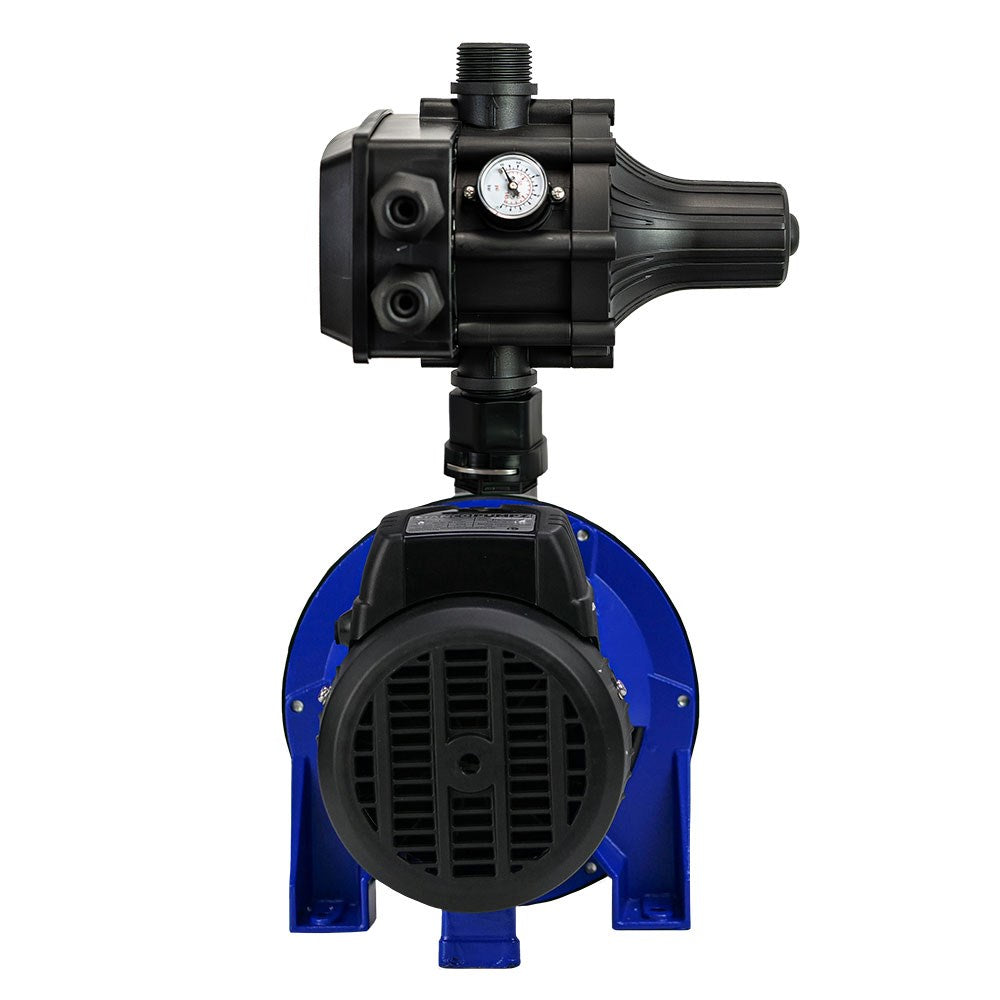

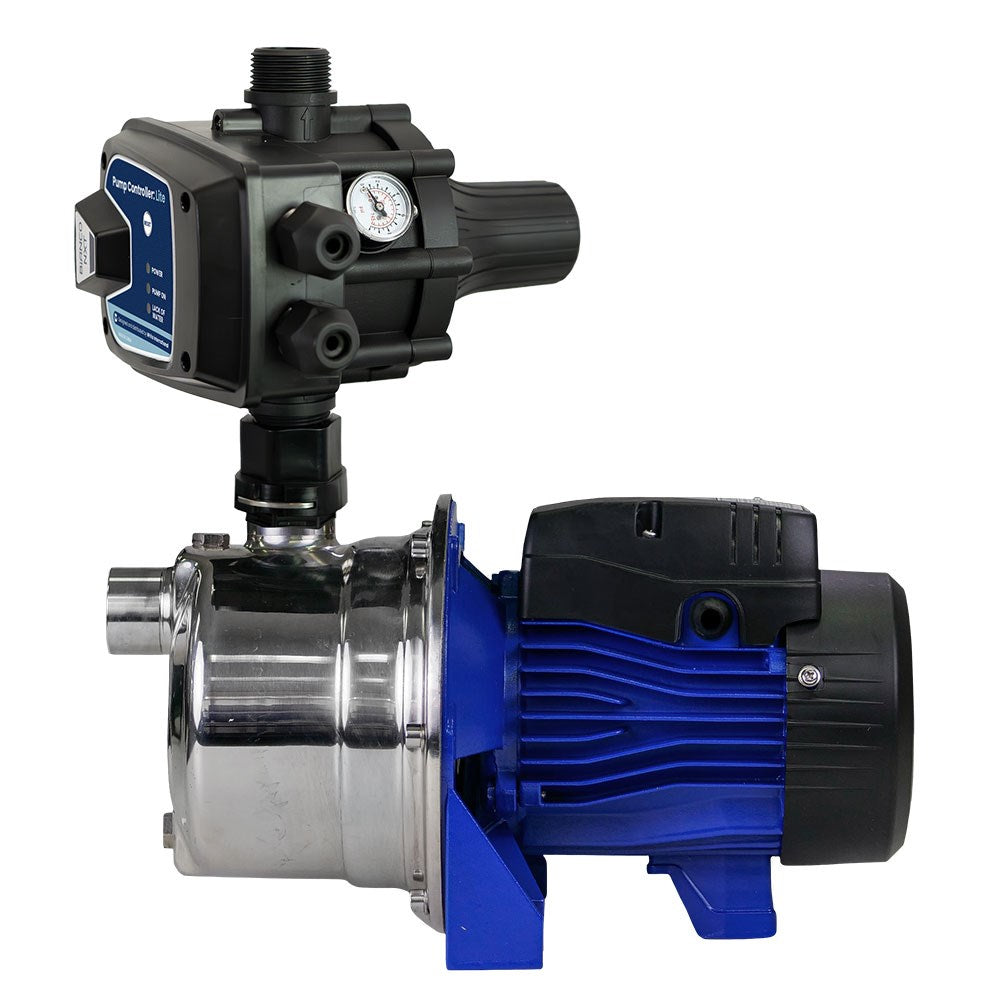

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations.

The pump is characterised by:

  • Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.
  • Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.
  • Run dry protection to prevent pump damage
  • Automatic electronic control has in-built check valve to prevent water backflow through the pump.
  • 2.2bar pump cut in for greater versatility.
  • Corrosion resistant pump body, diffuser and impeller to ensure pump durability
  • High quality mechanical shaft seal and high quality bearings
  • 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.


  • Used especially for supplying water to domestic installations and applications where a suction lift is required.

Package Information

  • 11 kg
  • L 420mm x W 230mm x H 460mm
Liquid Type: Clean Water
Clean water temperature range: 2 – 40oC
Pump body: Stainless Steel 304
Impeller: Jet/Venturi
Diffuser: Noryl Glass Reinforced
Mechanical seal: Carbon/Ceramic/Nitrile
O rings: Nitrile
Power Cable: 2m Cable H05 3G1.0
Maximum ambient temperature: 40oC
Maximum operating pressure: 6 bar
Pipe connections suction/discharge: 1” BSPF / 1” BSPM
Dimensions: 420mm L x 460mm H x 230mm W
Electrical data:
Rated voltage: 220 (-6%) -240V (+6%)
Mains frequency: 50 Hz
P2 (kW): 0.45 (Shaft Power)
Current: 3.5 amps
Capacitor: 10 uF
Motor duty: Continuous
Motor type: Asynchronous, TEFC
Motor protection: In-built thermal overload
Ingress protection: IP X4
Insulation class: F
Hydraulic Data:
Max Head: 38m
Max Flow: 50 l/min
Number taps: 4
