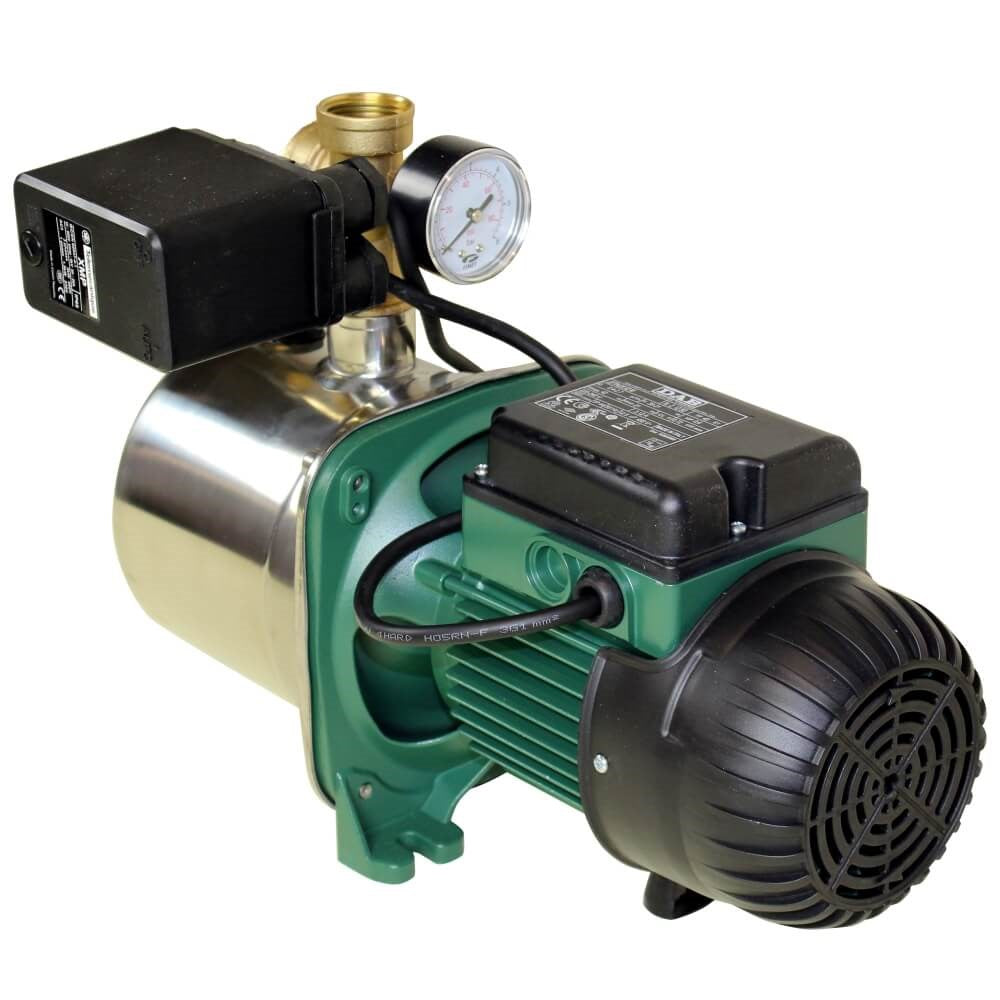

DAB-JINOX132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V

Roll over image to zoom in

DAB-JINOX132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V

Spare Parts

Code	Part Number	Description
702194	DABSR00005164	ASSEMBLY ACTIVEJI132M-N.6
702135	DABSR00010762	BOARD ACTIVEEI25/30M-N.7
702189	DABSR00005152	BOLTS ACTIVEJI102M-N.6
702181	DABSR00010362 25UF PRONG	DAB CAPACITOR 25 uF
702158	DABSR00005107	FAN ACTIVEEI40/50M-N.9
702121	DABSR00004650	FAN GUARD ACTIVEEI40/50M-N.9
702192	DABSR00005158	IMPELLER ACTIVEJI132M-N.6
702084	DABSR00004017	LOAD PLUG ACTIVEEI25/30M-N.7
702182	DABSR00005141	MOTOR ACTIVEEI40/50M-N.9
702191	DABSR00005157	MOTOR SHAFT ACTIVEJI132M-N.6
702085	DABSR00004018	PLUG ACTIVEEI25/30M-N.7
702183	DABSR00005144	PUMP BODY ACTIVEJI102M-N.6
702119	DABSR00009575	SEAL ACTIVEJ82M
702187	DABSR00005150	SUPPORT ACTIVEEI40/50M-N.9

Product Code

DAB-JINOX132MP

Technical Specifications

Brand	DAB Pumps
Product Type	Pressure System
Bar	4.8
Suitable For	Clean Water
Approval	Approved For Drinking Water
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	80
Hp	1.36
kPa	486
Kilo Watts	1
Head Range Category	b. 40 - 59 m
Max Head (m)	48
Port Size Inlet	1" BSPF inlet
Port Size Outlet	1" BSPF outlet
Powered	Electric
Taps	8
Volts	240
Warranty (months)	24
Watts	1000

Product Information and Data Sheets1

Product Information and Data Sheets2

Spare Parts Information and Exploded Diagrams

Operation and Installation Manuals1

Operation and Installation Manuals2

Certificates & Compliance Information
