The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.
Integrated pumping systems for pressurization in commercial building services industry and for rural and horticultural applications. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of large residential, medium/large apartments and high rise buildings (even over 14 floors).

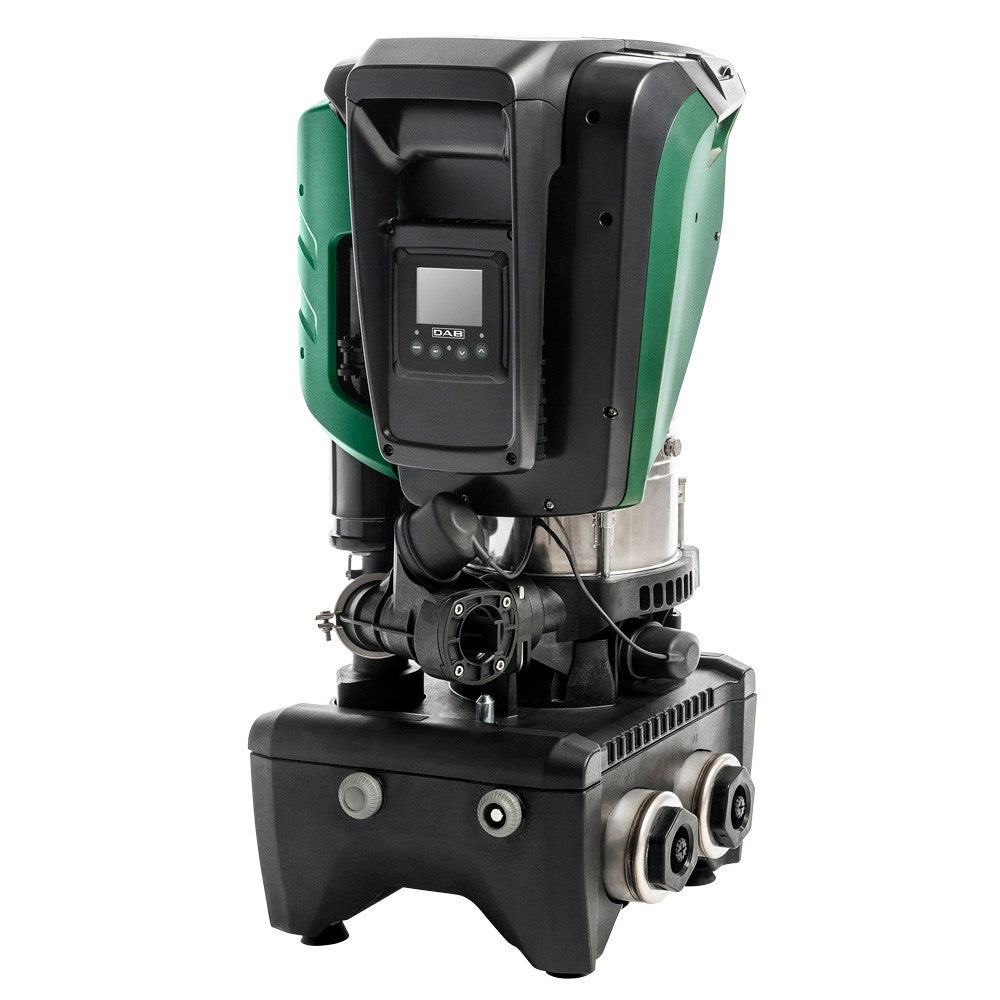

Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank. The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site, even by one person. The variable frequency drive keeps the pressure constant according to the load and thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings.
Technical Performance Data
| Technical Specifications | |
|---|---|
| Flow rate: | Up to 290 lpm (for single unit) |
| Head: | 96 m |
| Liquid temperature: | +50°C |
| Maximum ambient temperature: | +55°C |
| Maximum inlet pressure: | 5 Bar |
| Operation pressure: | 12 Bar / 1200 Kpa |
| Constant pressure range: | 1-12 Bar (3 bar by default) |
| Motor protection class: | IPX5 |
| Motor insulation class: | F |
| Impeller material: | Technopolymer with steel wear rings |
| Three phase power input: | 380-480V 50/60Hz – Hard Wired |
| Type of installation: | Fixed In Vertical Position |
| Type of pumped liquid: |
|
Key Features
| 1 | DISPLAY |
| 2 | INVERTER |
| 3 | MODULE WIFI/BLUETOOTH |
| 4 | PRESSURE SENSOR (delivery side) |
| 5 | PRESSURE SENSOR (suction side) |
| 6 | NON-RETURN VALVE |
| 7 | 2L EXPANSION TANK |
| 8 | IMPELLERS |
| 9 | HYDRAULICS CONNECTIONS |
| 10 | FAST CONNECTION TOOL |
| 11 | WATER COOLED PERMANENT MAGNET MOTOR |
| 12 | HANDLES |
Accessories
ESY I/O
The electronic expansion module allows Esybox Max to interface with the external input/output devices (eg: float switch, pressure switch, remote alarm) and with the BMS world (Building Management System).
CONTROL PANEL
Electrical connection panels for 2 or 3 pumps complete with magnetothermic switches for powering multi-pump units. It can be installed on the wall or directly to Esybox Max units using the dedicated pillar kit.
PILLAR KIT
Useful for mounting the control panel EG on board of the 2 or 3 Esydock max.
JOINT KIT
Kit consisting of 2 pieces of 3-piece unions and 2 pieces of 2” nipples to connect the delivery and suction of a pair of 2 esydock max to create 4-unit esybox groups.
E.SYAPP
e.syapp is the new DAB mobile application for the line of electronic booster sets that redefine the rules of residential water pressurisation: e.syline!
e.syapp allows you to:
- Choose the ideal e.syline product for your application.
- Easily calculate cost-savings on your electricity bill
- Instant access to installation videos, catalogs, quick guides, data sheets and instruction manuals.
DAB Product Selector
DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.
The free registration allows you to save projects and add custom articles to your quotations.
Product Code
Technical Specifications
| Brand | DAB Pumps |
| Bar | 7.8 |
| Approval | Approved For Drinking Water |
| Flow Range Category | c. 200 - 299 L/min |
| Flow Rate (L/min) | 290 |
| Kilo Watts | 1.97 kW |
| Head Range Category | c. 60 - 99 m |
| Max Head (m) | 96 m |
| Volts | 240 V |
