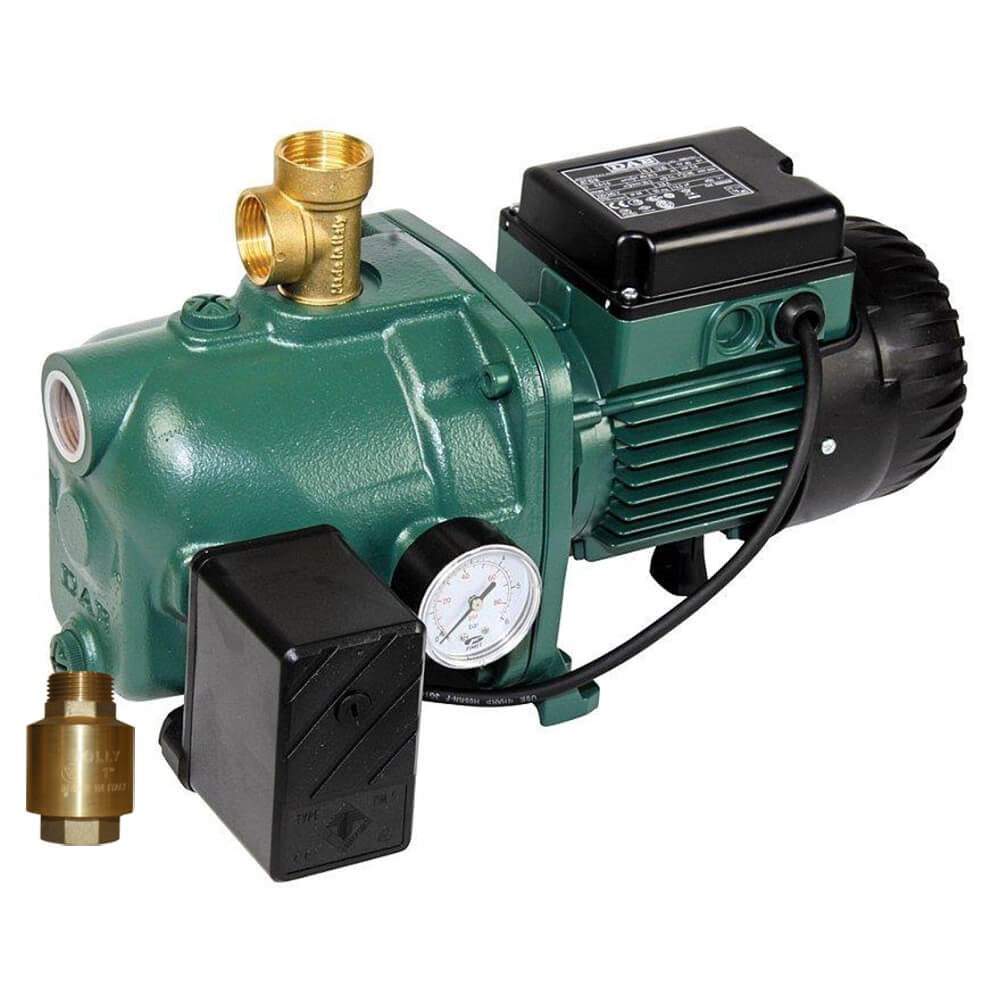

DAB-62MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 45L/MIN 42M 0.44KW 240V
Roll over image to zoom in
DAB-62MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 45L/MIN 42M 0.44KW 240V

DAB-62MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 45L/MIN 42M 0.44KW 240V

Malmaks Water Shop Ltd.
Price:
$1,477.75

Description

0.44kW, 0.6hp, 240V, max hd 42m, max flow 45L/m, 4 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.
Features
Self Priming Cast Iron Jet Pressure Pumps

2 Year DAB Warranty

 Spare Parts
 Code Part Number
Description
702135
DABSR00010762
BOARD ACTIVEEI25/30M-N.7
702079
DABSR00008871 12.5UF
CAPACITOR ACTIVEEI30/50M-N.8
702082 DABSR00004013
DIFFUSER ASSEMBLY JET62M-N.2
702077 DABSR00004002
FAN ACTIVEEI25/30M-N.7
702080 DABSR00004010
IMPELLER ACTIVEJ82M-N.6
702084 DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702198 DABSR00005173
MOTOR ACTIVEEI25/30M-N.7
702081
 DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702076 DABSR00004000
PUMP BODY ACTIVEJ82M-N.6
702119 DABSR00009575
SEAL ACTIVEJ82M
702078 DABSR00004003
SUPPORT ACTIVEJ82M-N.6



Product Code
DAB-62MP


Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Bar 4.2
Suitable For Clean Water
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 45
Hp 0.6
kPa 425
Kilo Watts 0.44
Head Range Category b. 40 - 59 m
Max Head (m) 42
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 4
Volts 240
Warranty (months) 24
Watts 440


Product Information and Data Sheets1

Product Information and Data Sheets2

Product Information and Data Sheets3

Spare Parts Information and Exploded Diagrams1

Spare Parts Information and Exploded Diagrams2

Operation and Installation Manuals1

Operation and Installation Manuals2

Certificates & Compliance Information



Price includes GST
